产品中心

Direct drive industry leaderHelp intelligent manufacturing create a better life

Arc motor

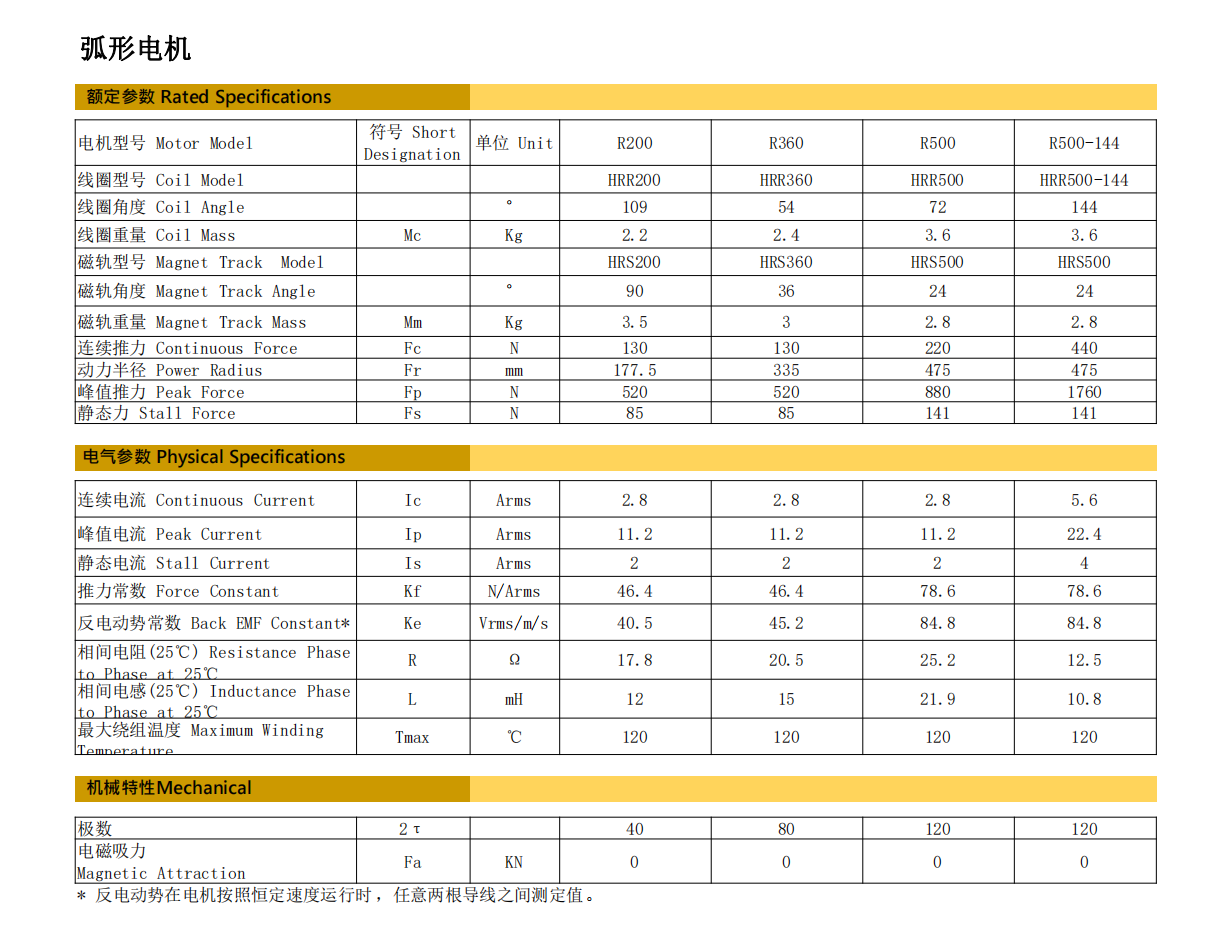

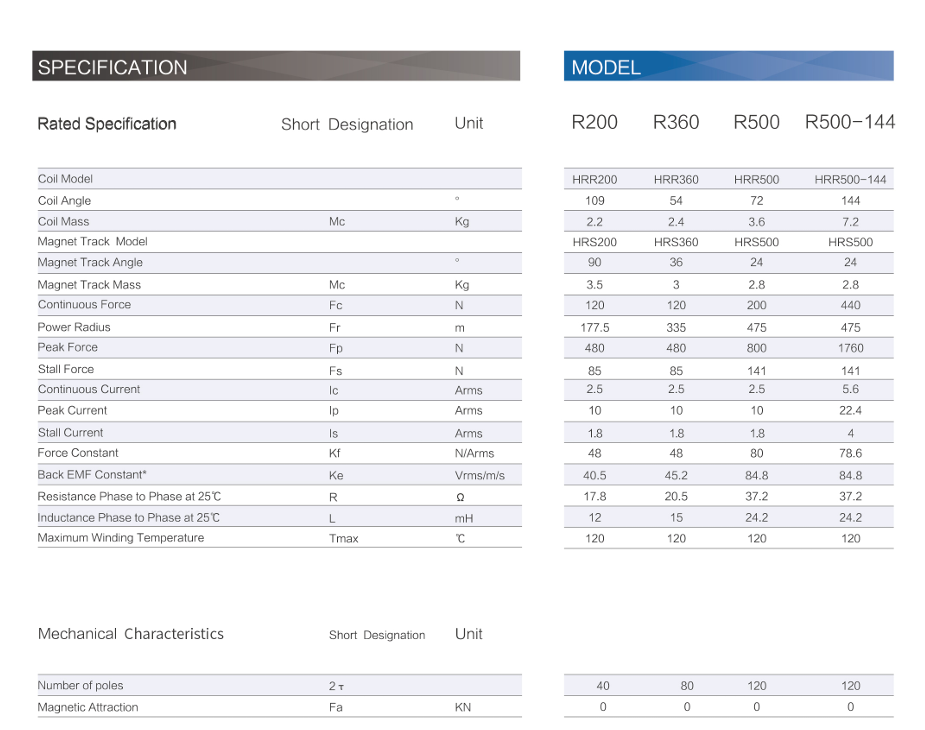

Motor parameters



Motor mounting dimension drawing

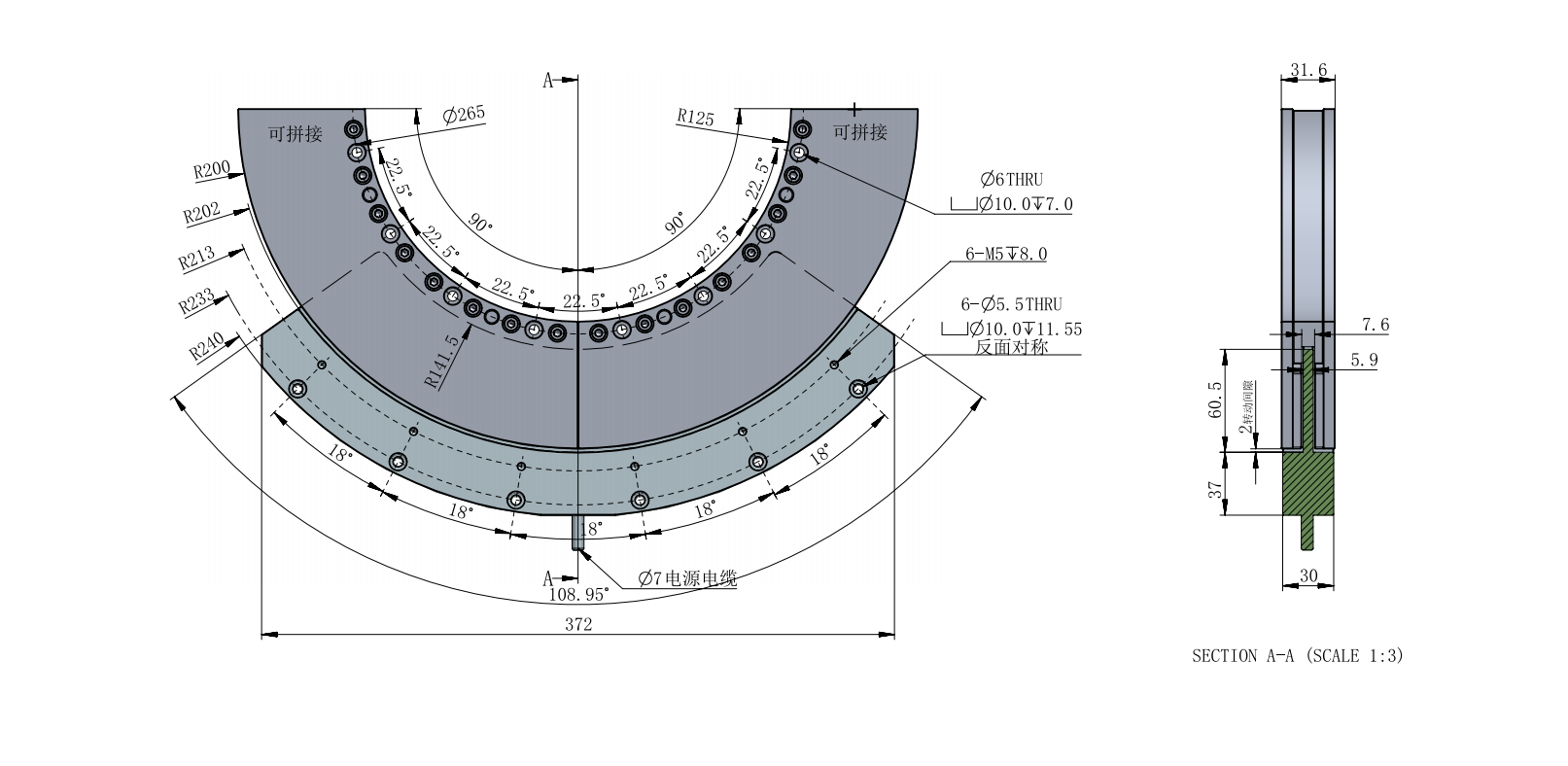

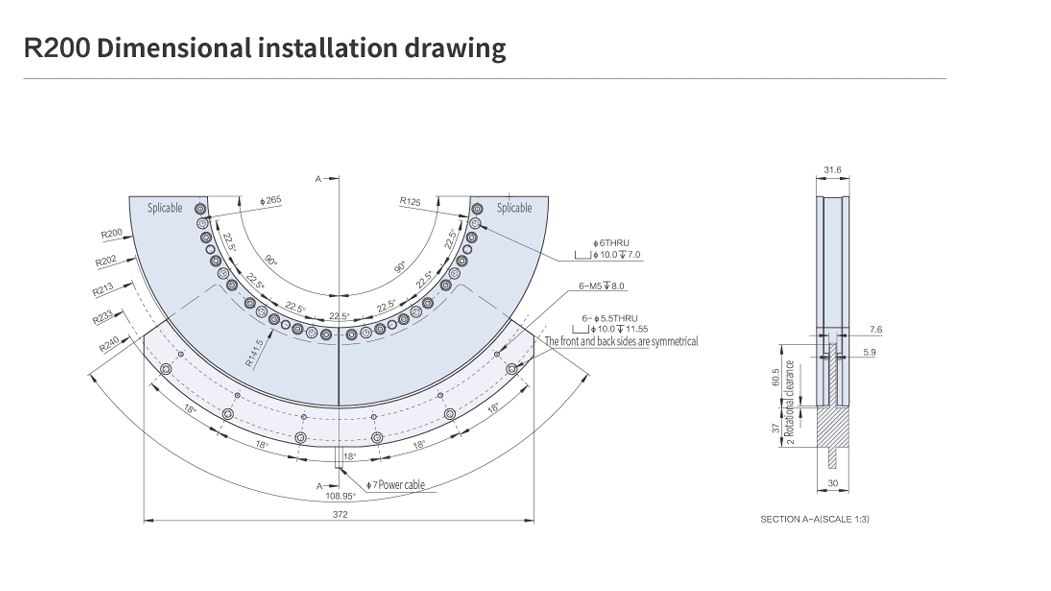

R200尺寸安装图

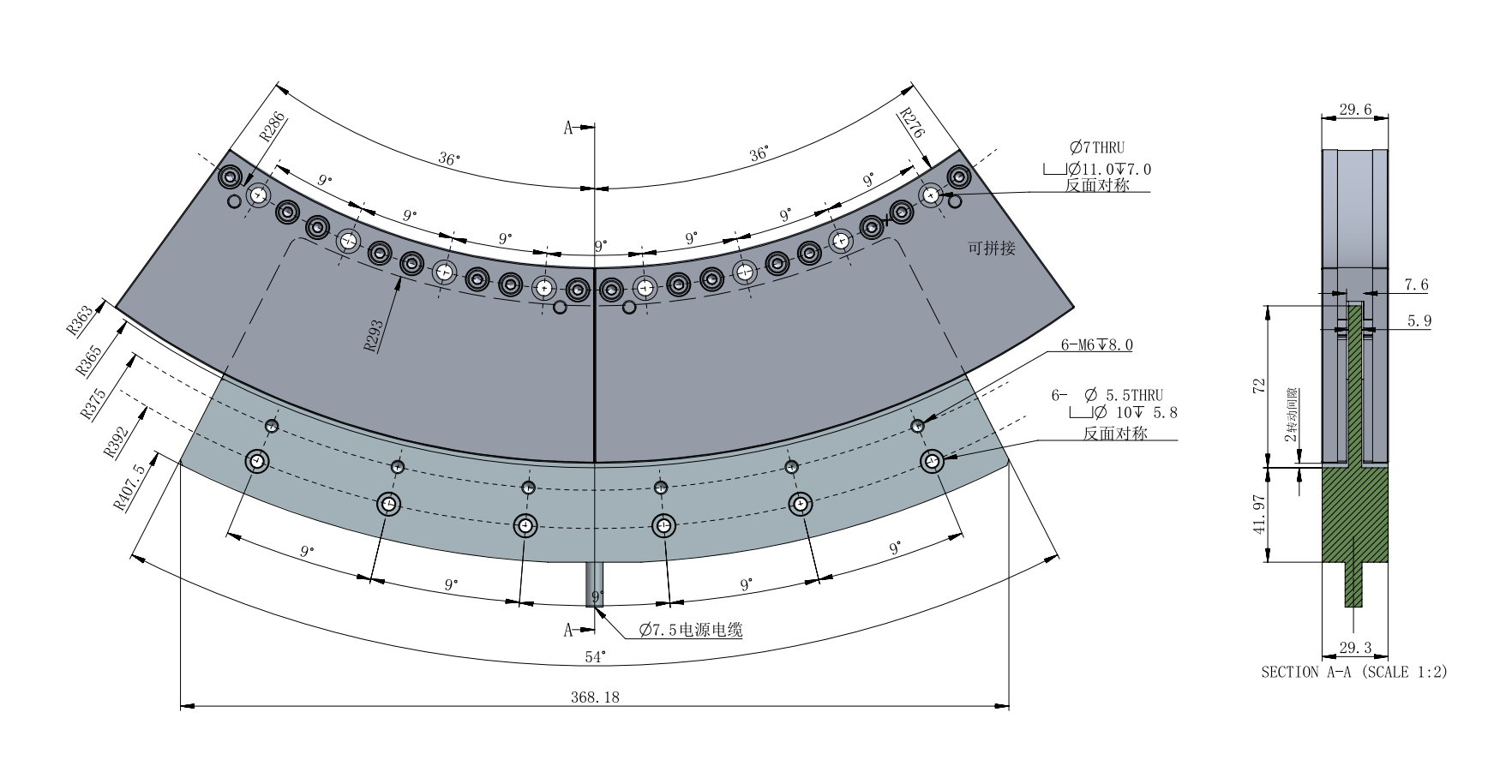

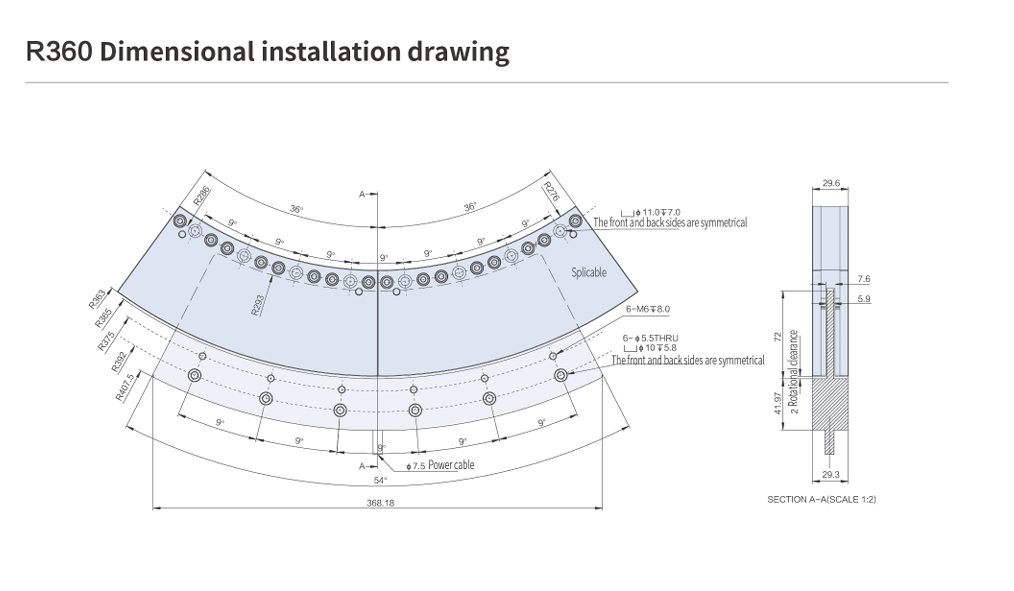

R360尺寸安装图

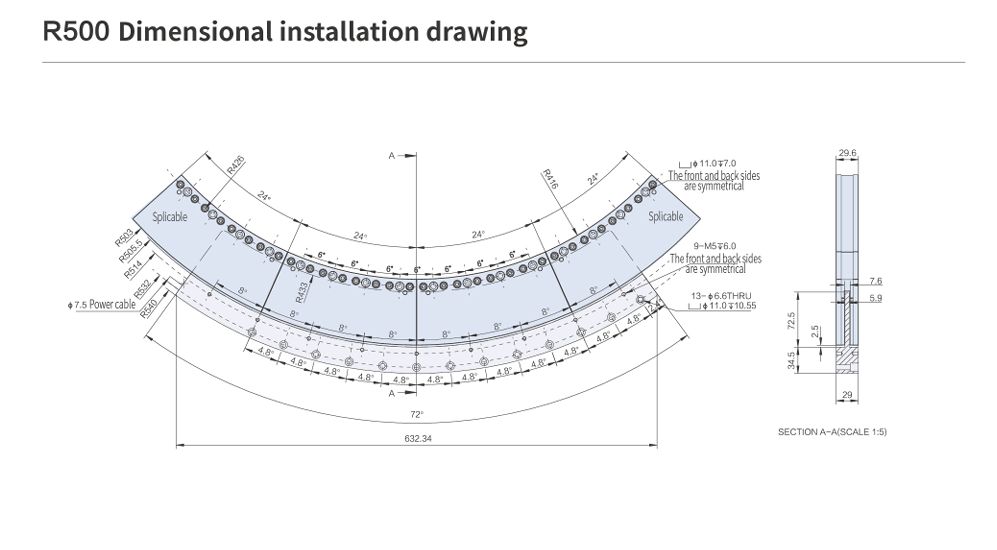

R500尺寸安装图

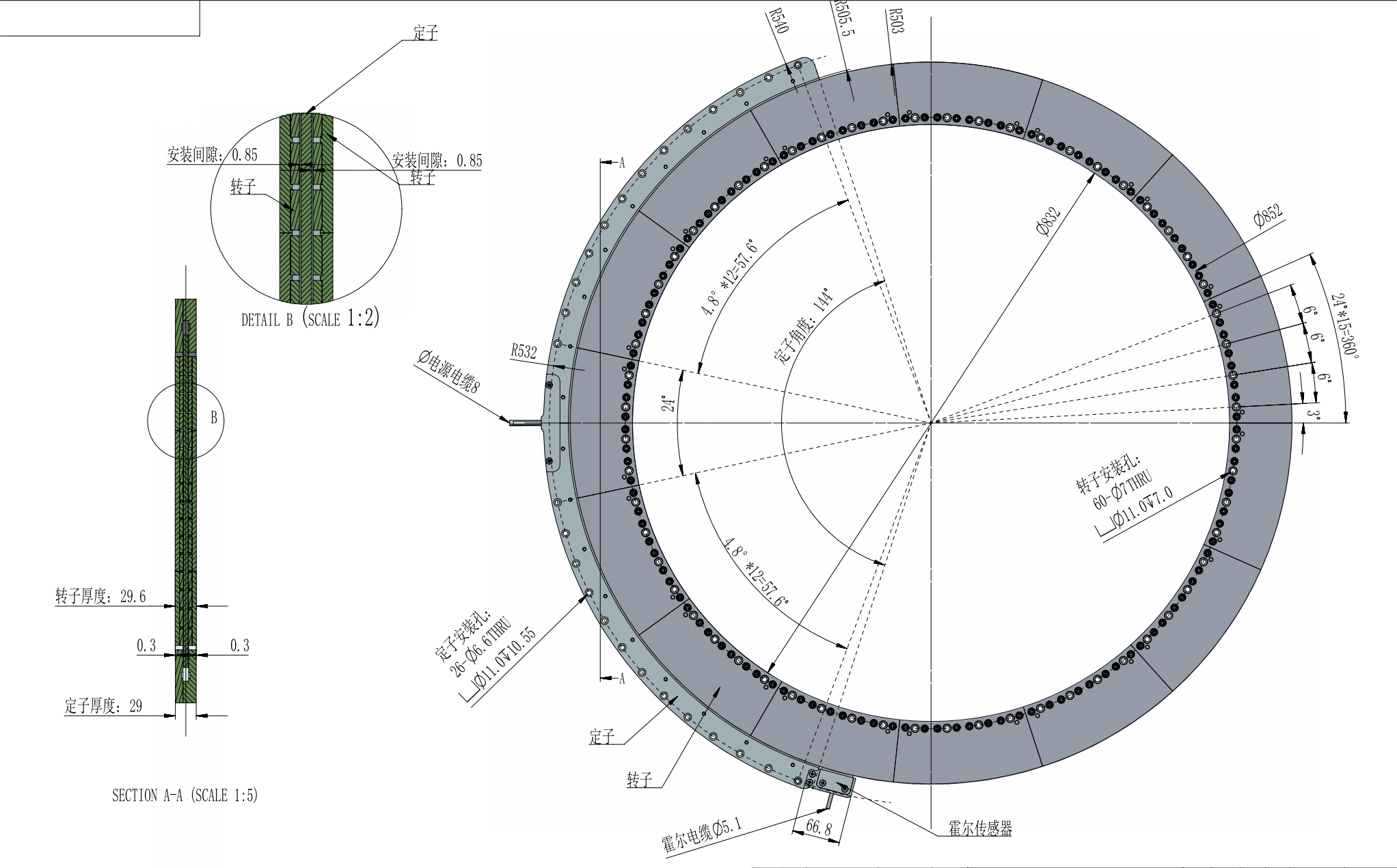

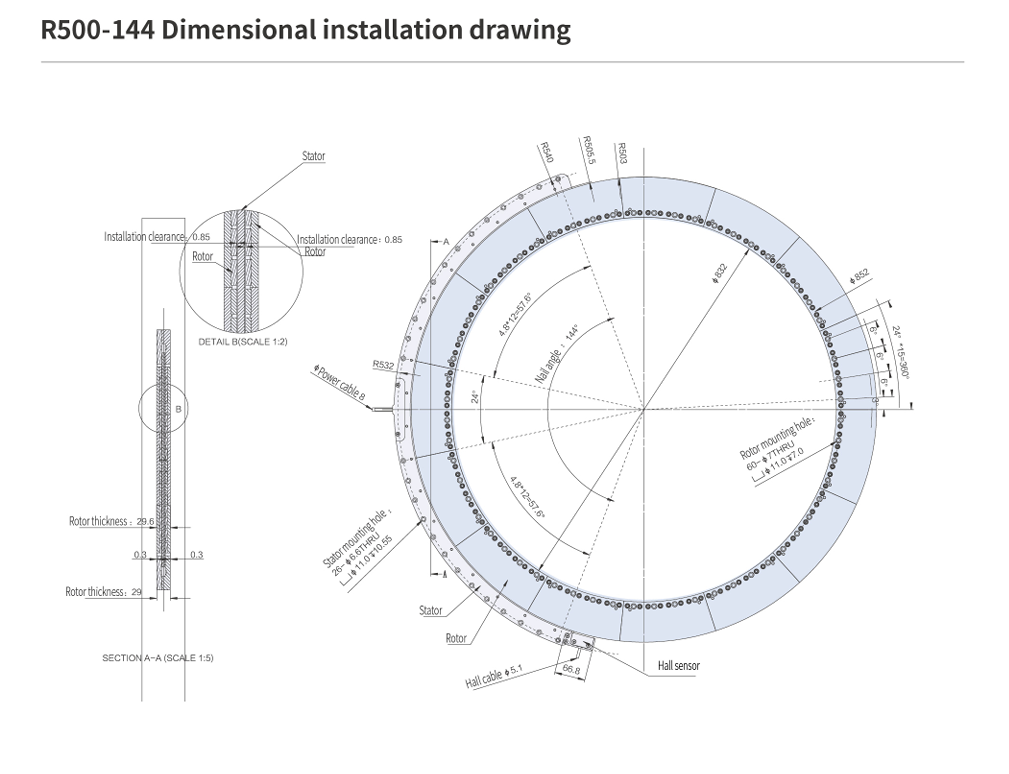

R500-144尺寸安装图




Return DD High Speed Series There's nothing below!
