Direct drive industry leaderHelp intelligent manufacturing create a better life

DD170 Series

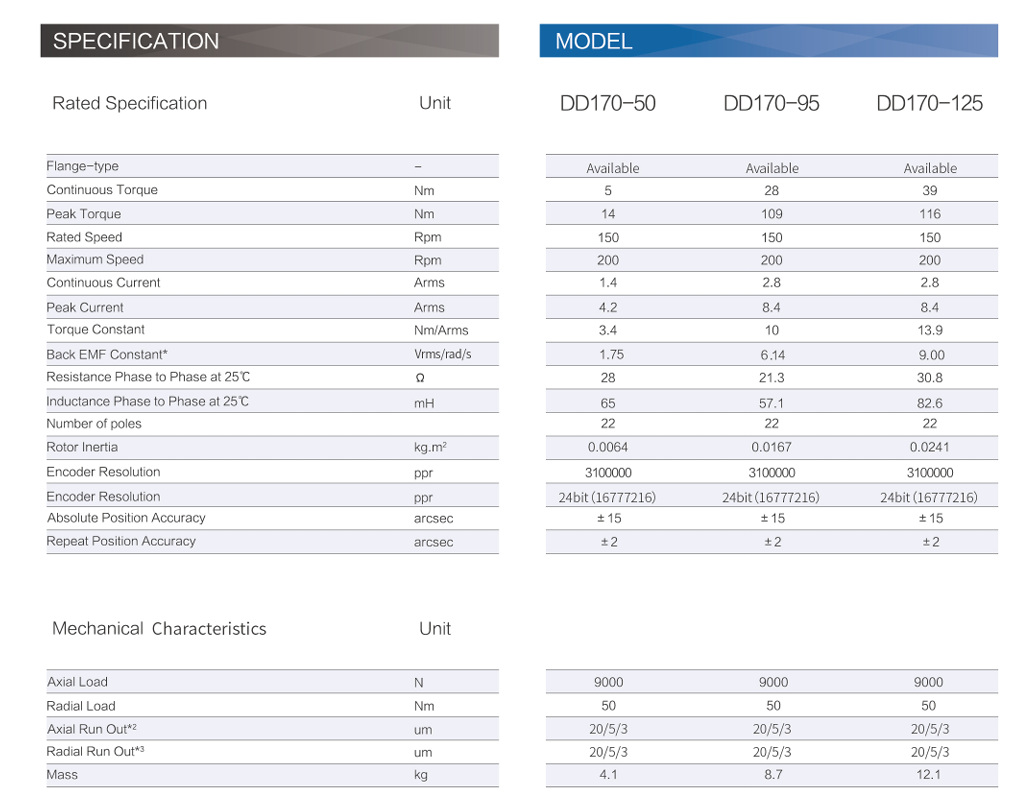

Motor parameters


Motor mounting dimension drawing

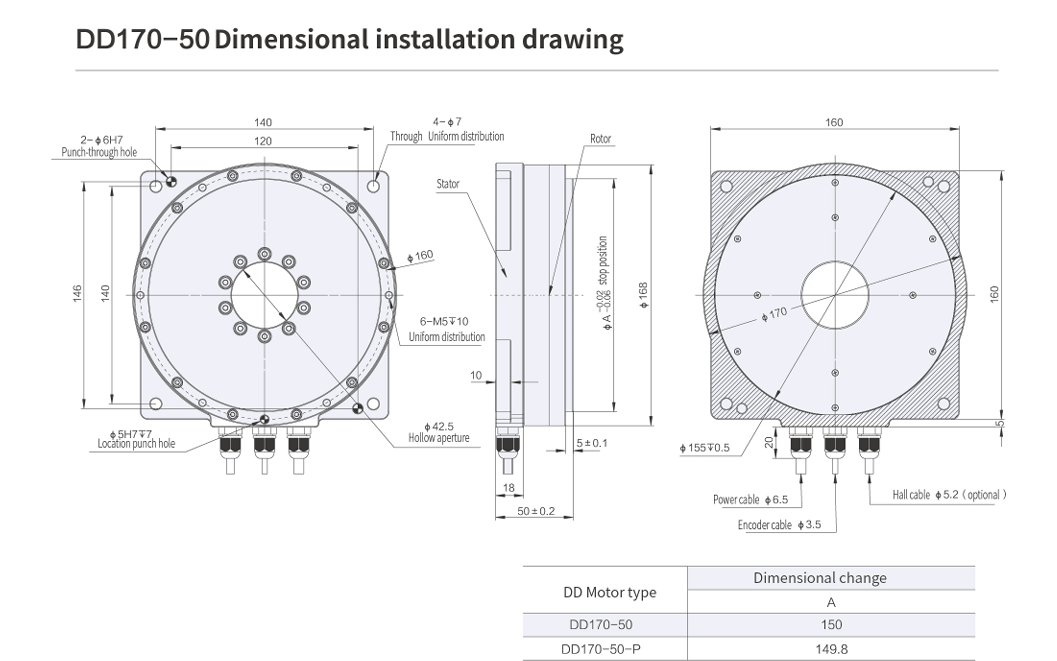

DD170-50尺寸安装图


DD170-50 外形尺寸图_00.png

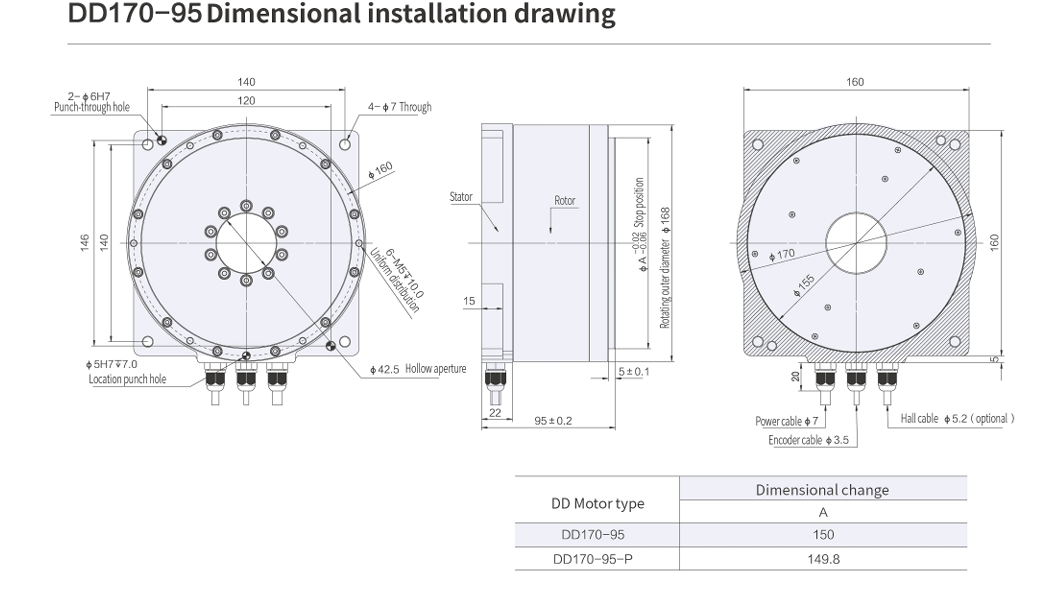

DD170-95尺寸安装图

DD170-95 外形尺寸图_00.png

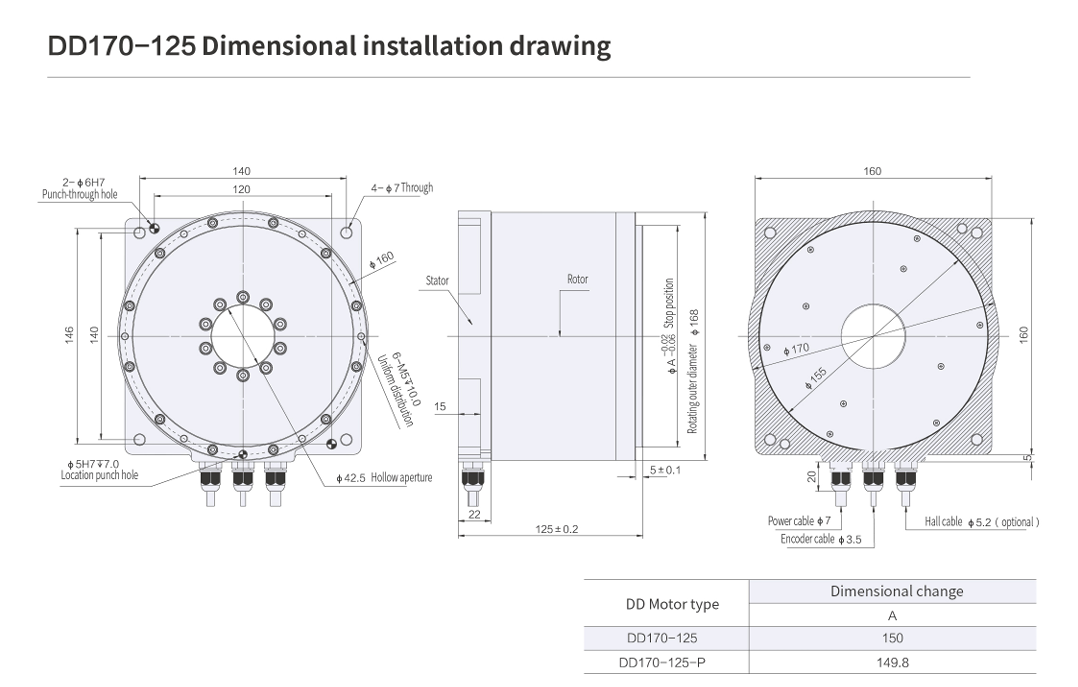

DD170-125尺寸安装图

DD170-125 外形尺寸图_00.png


Return DD160 without Flange Series DD180 Series
